JAWS

Artiulator set up

With mouse click the computer calculates individual set up values for condylar boxes and anterior guidance table of all common partially and fully adjustable articulators (Arcon- and Non-Arcon types with linear inserts like Dentatus and Hanau, Artex AN, Artex AV, Artex Reference, Condylator, Denar Mark 2, Panadent, Protar, Sam2 and Sam3, Stratos 200, Stuart). Individual values for inserts are automatically calculated for direct transfer to the selected articulator. For dental technicians a separate technician page including all articulator setup values can be printed out.

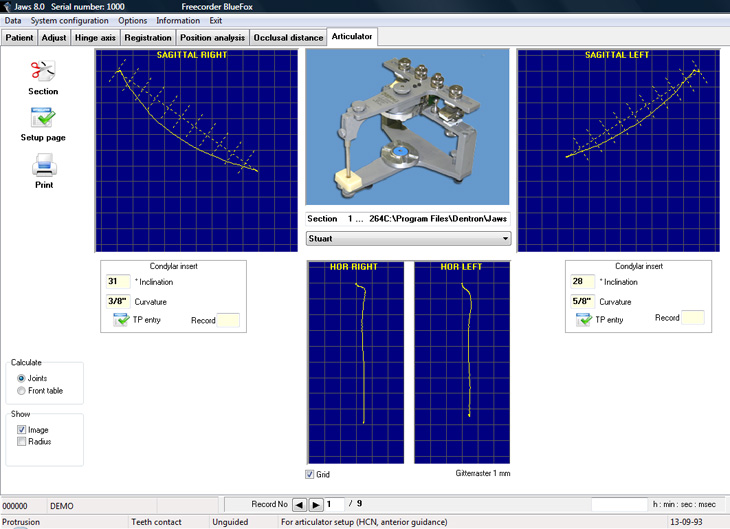

Setup values for curvature and sagittal inclination (STUART e.g.)

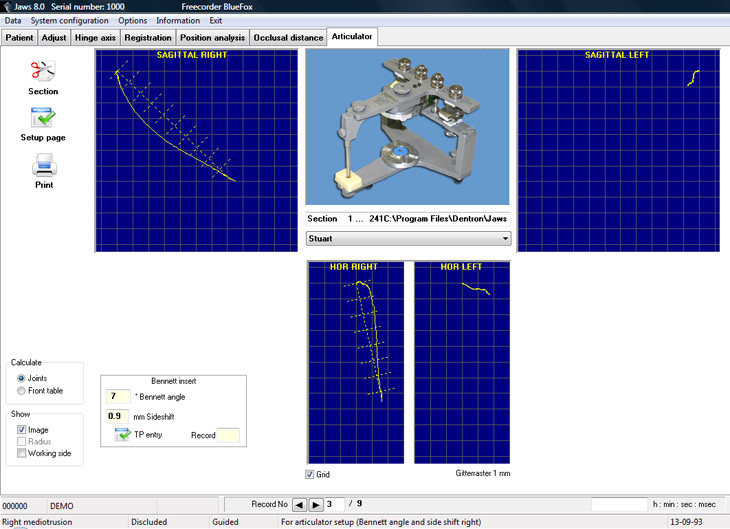

Setup values for Bennett angle, immediate side shift and working side (STUART e.g.)

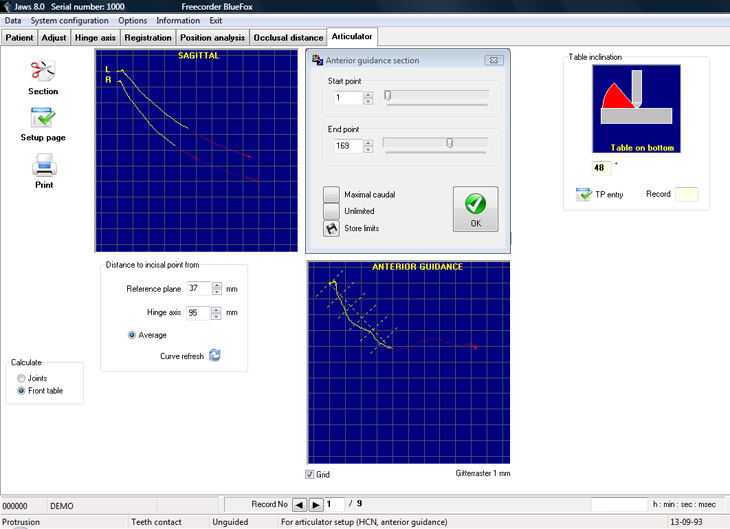

Setup values for anterior guidance and front table
